Technical Data

UNOFFICIAL NAMES/SLANG:	N/A
FUNCTION:	VERTICAL TAKE-OFF AND LANDING (VTOL) TRANSPORT AIRCRAFT
DATE DEPLOYED:	XXXXX
PRIME CONTRACTOR:	BELL / BOEING
UNIT COST:	APPROX. $40,000,000 (FY01)
LENGTH:	WINGS SPREAD: 57' - 4" (17.64M); WINGS FOLDED: 63' - 0" (19.39M)
ROTOR DIAMETER:	38' - 0" (11.70M) - 3 GRAPHITE/FIBERGLASS AUTOMATIC FOLDING BLADES PER HUB
HEIGHT:	WINGS SPREAD: 22' - 1" (6.80M); WINGS FOLDED: 18' - 1" (5.56M)
SPEED:	257 KNOTS
WEIGHT (MAX. TAKE-OFF):	52,600 LBS (23,495 KG) (VTO); 57,000 LBS (25,909 KG) (STO)
ARMAMENT:	(2) .50 CALIBER CABIN MOUNTED MACHINE GUNS
MAX. NORMAL ALTITUDE:	26,000 FT. (7,925M)
RANGE:	APPROX. 240 NM, CAPABLE OF IN-FLIGHT REFUELING
ENGINES:	2 Rolls-Royce Liberty AE1107C @ 6,830 SHAFT HORSEPOWER EA.
CREW:	2 OFFICERS, CABIN SPACE FOR 24 TROOPS OR 12 LITTERS

HELICOPTERS

AH-1W Super Cobra

AH-64 Apache

SH-2 Seasprite

SH-3 Sea King

HH-60G Pave Hawk

UH-60 Black Hawk

SH-60 Sea Hawk

CH-46 Sea Knight

CH-47 Chinook

CH-53 Sea Stallion

MH-53E Sea Dragon

MH-53J Pave Low

UH-1 Iroquois

MV-22 Osprey

TH-57 Sea Ranger

TH-67 Creek

HH-65 Dolphin

OH-58 Kiowa

OH-6 Cayuse

MH-68 Enforcer

.............................................

MV-22 OSPERY

Description:

The V-22 is being developed to perform United States Marine Corps (USMC), United States Navy(USN), and United States Special Operations Command (USSOCOM) combat missions. The V-22 design, incorporating advanced but mature technology proven in the XV-15 tiltrotor demonstrators, V-22 Full Scale Development (FSD) models, and V-22 Engineering and Manufacturing Development (EMD) models, takes advantage of proven technology in composite materials, digital fly-by-wire flight controls, and advanced survivability and crashworthiness. A tiltrotor combines the speed, range and fuel efficiency normally associated with turboprop aircraft with the vertical take-off/landing and hover capabilities of helicopters. The tiltrotor aircraft represents a major technological breakthrough in aviation that meets long standing military needs.

The V-22 is a joint service, multi-mission aircraft with vertical take-off and landing (VTOL) capability. It performs VTOL missions as effectively as a conventional helicopter while also having the long-range cruise abilities of a twin turboprop aircraft.

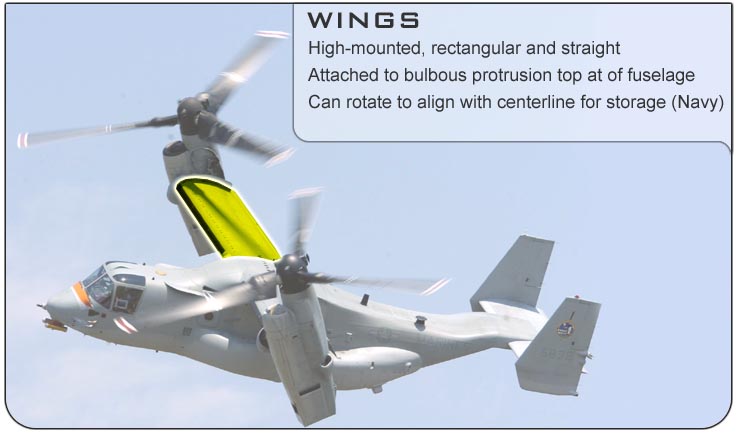

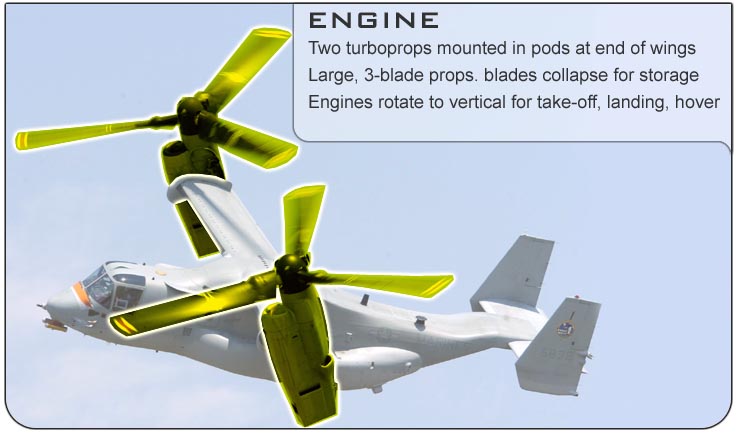

The Osprey is a tiltrotor aircraft with a 38-foot rotor system and engine/transmission nacelle mounted on each wing tip. It can operate as a helicopter when taking off and landing vertically. Once airborne, the nacelles rotate forward 90 degrees for horizontal flight, converting the V-22 to a high-speed, fuel-efficient turboprop airplane. The wing rotates for compact storage aboard ship. The first flight occurred in March 1989. The V-22 is the world's first production tiltrotor aircraft. Planned purchases include 360 for the Marine Corps, 48 for the Navy and 50 for the Air Force.

The Marine Corps is the lead service in the development of the Osprey. The Marine Corps version, the MV-22A, will be an assault transport for troops, equipment and supplies, and will be capable of operating from ships or from expeditionary airfields ashore. The Navy's HV-22A will provide combat search and rescue, delivery and retrieval of special warfare teams along with fleet logistic support transport. The Air Force CV-22A will conduct long-range special operations missions.
