M1A1 ABRAMS

M1A1

Description:

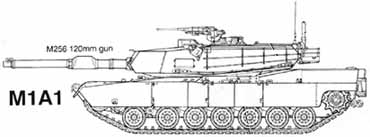

The M1A1 is an improved version of the M1 Main Battle Tank (MBT). It includes a 120mm smoothbore main gun, an NBC overpressure protection system, and an improved armor package. This tank significantly increases the capabilities of the Fleet Marine Forces across the full spectrum of conflict in the near and midterm. Engagement ranges approaching 4000 meters were successfully demonstrated during Operation Desert Storm. The M1A1 Tank, in addition to the improved armor, 120mm smoothbore gun and the NBC overpressure system, has a Deep Water Fording Kit (DWFK), a Position Location Reporting Systems (PLRS), enhanced ship tiedowns, Digital Electronic Control Unit (DECU) (which allows significant fuel savings),and Battlefield Override. The M1A1 MBT has the capability to conduct operations ashore. It is compatible with all US Navy amphibious ships and craft (to include the LCAC) and Maritime Prepositioning Ships (MPS).

Background: The Marine Corps has fielded the M1A1 Common Tank to replace the aging M60A1 Rise/Passive tank. The M60 has reached the end of its service life and lacks the capability to survive and to defeat the threats expected to be encountered on the modern battlefield. Due to unique Marine Corps amphibious requirements, and the need for both supportability and interoperability between the Marine Corps and the US Army, the two services agreed to jointly produce the M1A1 Main Battle Tank. During Operation Desert Shield/Storm, the Marine Corps borrowed 60 M1A1s (called the M1A1 Heavy Armor) from the US Army. There were also 16 Marine Corps M1A1 Tanks delivered on an accelerated schedule for employment during the operation. This total of 76 M1A1 tanks was employed by 2d Tank Battalion and elements of 4th Tank Battalion. All loaned tanks were returned to the US Army after Desert Storm. The USMC will complete fielding of all tanks, to include active, reserve, MPS, and depot maintenance float (DMF) during FY 96.
