COMMAND SHIPS (AGF)

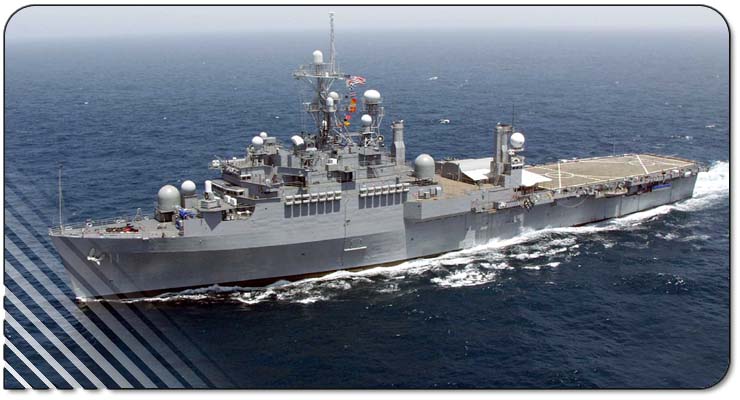

AGF 11

CLASS SPECIFIC INFORMATION

LA SALLE Class Specifications

Overall Length
522' - 0"
Waterline Length
500' - 0"
Extreme Beam
107' - 0"
Waterline Beam
84' - 0"
Max. Navigational Draft
22' - 0"
Draft, Keel
Not Available
Draft Limit
23' - 0"
Light Displacement
9,559 tons
Full Displacement
13,634 tons
Structural Composition
Hull: Steel; Superstructure: Steel
Number of Propellers
2
Propulsion Type
Steam Turbine
Total Shaft Horsepower
24,000 shp
Speed
21 knots
Crew (typ.)
Officers: 72; Enlisted: 593

CORONADO Class Specifications

Overall Length
569' - 0"
Waterline Length
548' - 0"
Extreme Beam
108' - 0"
Waterline Beam
84' - 0"
Max. Navigational Draft
22' - 0"
Draft, Keel
Not Available
Draft Limit
23' - 0"
Light Displacement
10,878 tons
Full Displacement
16,405 tons
Structural Composition
Hull: Steel; Superstructure: Steel
Number of Propellers
2
Propulsion Type
Steam Turbine
Total Shaft Horsepower
24,000 shp
Speed
21 knots
Crew (typ.)
Officers: 106; Enlisted: 1247
