LANDING CRAFT AIR CUSHIONED (LCAC)

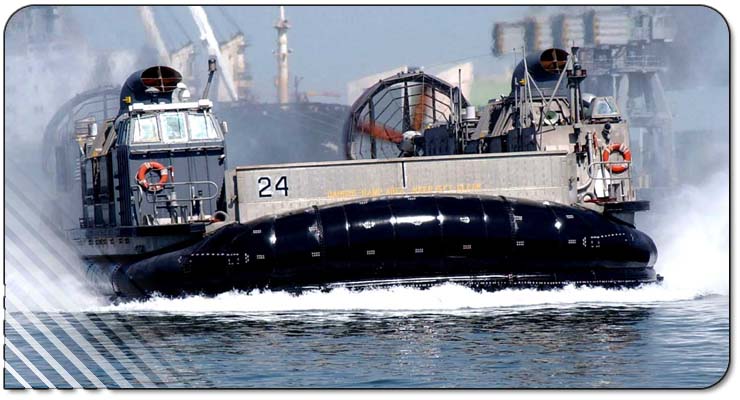

LCAC 24

CLASS SPECIFIC INFORMATION

LCAC Class Specifications

Nickname
Hopper
Overall Length
88' - 0"
Waterline Length
88' - 0"
Extreme Beam
47' - 0"
Waterline Beam
47' - 0"
Max. Height
23' - 8"
Cushion Height
4' - 6"
Design Payload
120,000 pounds
Light Displacement
205,300 pounds
Max Payload
150,000 pounds
Structural Composition
Skirt: Rubber; Superstructure: Steel
Number of Propellers
2 @ 11' - 9" diameter ea. Reversible, variable pitch
Propulsion Type
Gas Turbine - (4) Textron Lycoming TF40B
Lift System
(4) 63-in.-diameter double-entry, double discharge centrifugal fans
Total Shaft Horsepower
7,910 shp
Speed @ Design Payload
40+ knots (Sea State 2)
Crew
5
Manufacturer
Textron Marine & Land Systems
