AMPHIBIOUS TRANSPORT DOCKS (LPD)

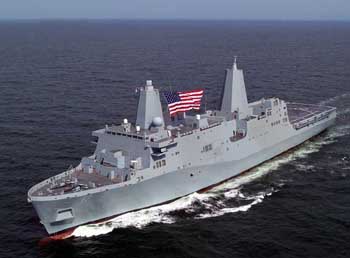

LPD 17

CLASS SPECIFIC INFORMATION

AUSTIN Class Specifications

Overall Length
569' - 0"
Waterline Length
548' - 0"
Extreme Beam
105' - 0"
Waterline Beam
84' - 0"
Max. Navigational Draft
22' - 0"
Draft, Keel
Not available
Draft Limit
23' - 0"
Light Displacement
9,201 tons
Full Displacement
16,914 tons
Structural Composition
Hull: Steel; Superstructure: Steel
Number of Propellers
2
Propulsion Type
Steam Turbine; (2)
Total Shaft Horsepower
24,000 shp
Speed
21 knots
Crew (typ.)
Officers: 29; Enlisted: 459

SAN ANTINIO Class Specifications

Overall Length
684' - 0"
Waterline Length
661' - 0"
Extreme Beam
105' - 0"
Waterline Beam
97' - 0"
Max. Navigational Draft
23' - 0"
Draft, Keel
Not available
Draft Limit
22' - 0"
Light Displacement
Not available
Full Displacement
24,433 tons
Structural Composition
Hull: Steel; Superstructure: Steel
Number of Propellers
2
Propulsion Type
Diesel
Total Shaft Horsepower
Not available
Speed
22 knots
Crew (typ.)
Officers: 33; Enlisted: 364
