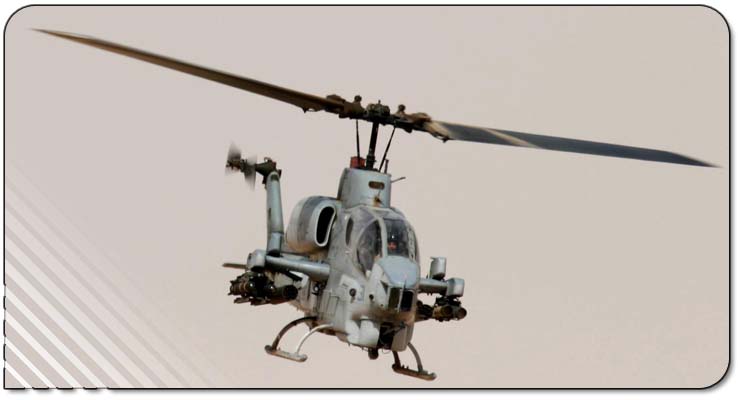

AH-1W SUPER COBRA

AH-1W

Description:


Armed helicopters came into widespread use in Vietnam in the early Sixties. Limitations of the modified armed utility helicopters used led to the specially configured attack helicopter.

Bell Helicopter (now Bell Helicopter Textron) had already evolved the first attack helicopter design, based on the use of UH-1 Huey dynamics (rotors, drives, engine) with a new fuselage. Bell also built a company-sponsored, scaled-down prototype using H-13/Model 47 series components, its Model 207 Sioux Scout.

While the Army went forward with its sophisticated AAFSS (advanced aerial fire support system) program to provide an attack helicopter, Bell proceeded with another company-sponsored prototype, Model 209, using the Huey dynamics and an airframe similar to the initial design. The 209 first flew in September 1965. The urgent need for greater armed helicopter performance in Vietnam and the success of the 209 led to Army orders for prototypes and production models of the 209 as interim attack helicopters, pending production of the AAFSS (which, finally, was never to occur). Carried over from the 209 were the slim fuselage with tandem cockpits (gunner in front of pilot), the Lycoming T-53 engine, stub wings with store stations and the under nose turret. Its retractable skid landing gear was replaced by a fixed gear. As the AH-1G, the Huey Cobra went into combat in September 1967.

The Marines also operated armed Hueys in Vietnam, and ordered their own version of the Cobra in May 1968. Featuring the Pratt and Whitney Twinpac T400 engine (two 900-hp turboshaft engines coupled together) giving an overall increase in installed power, the AH-1J Sea Cobra included a new nose turret gun, the three barrel XM-197 20mm and other improvements. While development and production of the first 49 ordered were under way, the Marines obtained 38 AH-1Gs from the Army. After initial training of Marines by the Army, Marine Huey Cobras first became operational in April 1969 with VMO-2 in Vietnam. In December 1969, the AH-1Gs were transferred to HML-367. After flight tests beginning that same month and subsequent BIS trials, the first AH-1Js joined them in February 1971, entering combat the following month. AH-1Js, including those of HMA-369, participated in SEAsia operations until final withdrawal and continued as the Marine's attack helicopter afterwards, a total of 67 being delivered. The Marine AH-1Gs became the reserve helicopter attack squadron's aircraft.

With increasing demands for higher performance, particularly greater load-carrying capability in high temperature conditions, Bell developed improved dynamic components for the Huey series. Application of these components, which included a larger diameter rotor, led to the 309 attack helo in the early Seventies. This allowed an increased payload, providing more combat capability. The subsequent Marine-ordered version of the King Cobra was designated the AH-1T. In addition to the modifications for improved combat effectiveness, major efforts were made to incorporate the lessons of the Cobra experience in achieving greater reliability and maintainability. With the TOW missile system added to its weapons, the AH-1T gave Marines a ground attack capability far beyond that first envisioned by their predecessors who took the first Marine Huey Cobras into combat in the late 1960s.

An upgrade to the AT-1T, the AH-1W was received in 1986. The AH-1W Super Cobra provides full night-fighting capability with the Night Targeting System (NTS). The Super Cobra is armed with a 20mm turret gun, TOW, Hellfire, Sidewinder, Sidearm missiles, and 5 inch or 2.75 inch rockets. Future upgraded and modifications for the AH-1W are underway or in the planning stages.


PHOTOS

Click on images for larger view

AH-1W Photo
AH-1W Photo
AH-1W Photo
AH-1W Photo
AH-1W Photo
AH-1W Photo
AH-1W Photo
AH-1W Photo
AH-1W Photo
AH-1W Photo
AH-1W Photo
AH-1W Photo
AH-1W Photo
AH-1W Photo
AH-1W Photo
AH-1W Photo
AH-1W Photo
AH-1W Photo
AH-1W Photo
AH-1W Photo
