AH-64 APACHE

AH-64

Description:


The AH-64 is a heavily armed attack helicopter

Features: The Apache is a state-of-the-art attack helicopter capable of defeating a wide range of targets, including all armored vehicles. This helicopter, which is capable of performing its mission at night and under adverse weather conditions, provides direct aerial fire as an integral element of ground units. Armed with laser-designated Hellfire missiles, 30mm cannon and Hydra 70 rockets, the Apache can direct highly mobile and effective firepower against the enemy. Its Target Acquisition Designation Sight (TADS) and Pilot Night Vision Sensor (PNVS) provide day and night laser designation of targets and infrared night vision for both the pilot and the copilot/gunner.

Background: The Apache was acquired by the Army in 1986. The Army has 28 battalions equipped with the Apache and expects to have a total of 37 battalions equipped by FY95. Of the 811 Apaches ordered, 729 have been delivered. The last delivery is expected in FY95.

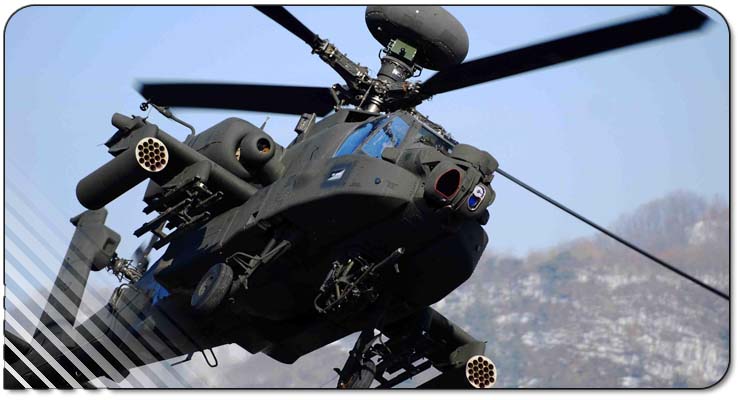

AH-64D Apache Longbow Hellfire Missile System: The Longbow Hellfire missile provides an adverse weather, fire-and-forget, heavy anti-armor capability for attack helicopters.The Longbow Hellfire missile is a millimeter wave radar fire-and-forget version of the Hellfire missile. The Longbow development program also includes development of a fire control radar system and numerous modifications to the helicopter. The Longbow fire control radar system will locate, classify, and prioritize targets for the Longbow Hellfire missile. The Longbow system is being developed for integration into the Apache attack helicopter and the Comanche armed reconnaissance helicopter. Longbow is planned for integration into the entire fleet of Apache aircraft and into one-third of the Comanche fleet.

Longbow Hellfire incorporates a millimeter wave radar seeker on a Hellfire II aft section data bus. The primary advantages of the Longbow missile include adverse weather capability (rain, snow, fog, smoke, and battlefield obscurants); millimeter wave countermeasures survivability; fire-and-forget guidance, which allows the Apache Longbow to launch and then remask, thus minimizing exposure to enemy fire; an advanced warhead capable of defeating reactive armor configurations projected into the 21st century; and reprogrammability to adapt to changing threats and mission requirements.
